DURAGO
BR900686

第三方数据DURAGO : BR900686

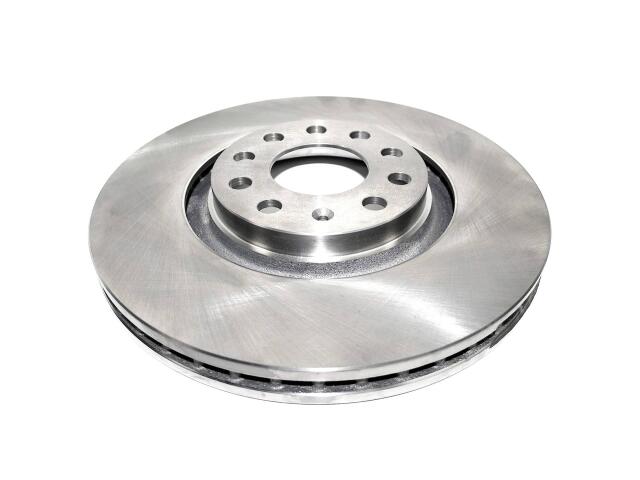

Rotor
DURAGO : BR900686

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.83
Overall Height (MM): 46.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

AUDI (2)

A4 (4)

ALLROAD (2)

SEAT (1)

OE号码

品牌	号码
OE	AX90068*

品牌	号码
OE	90068*
