DURAGO
BR900638

第三方数据DURAGO : BR900638

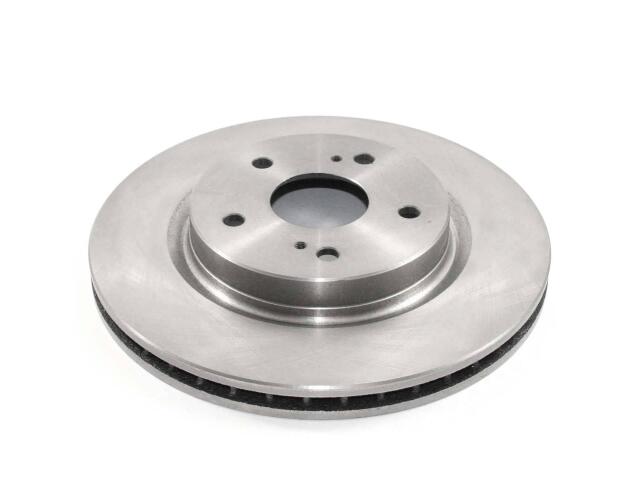

Rotor
DURAGO : BR900638

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 11.57
Outside Diameter (MM): 294
Overall Height (IN): 1.93
Overall Height (MM): 49
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SUZUKI (1)

OE号码

品牌	号码
OE	31454G:*
OE	AX900638:*

品牌	号码
OE	AX90063*

品牌	号码
OE	90063*
