DURAGO
BR900516

第三方数据DURAGO : BR900516

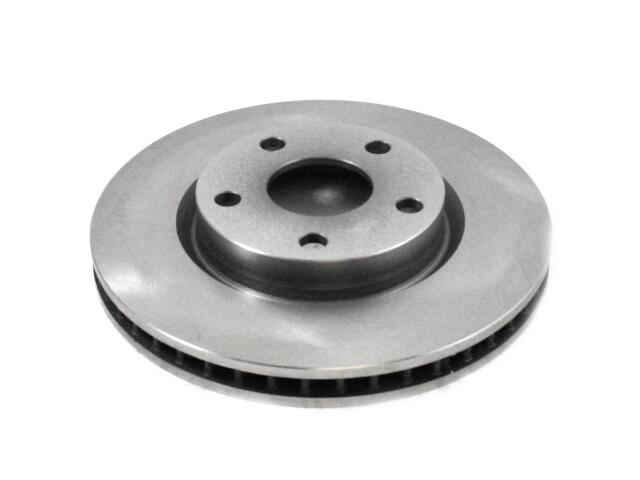

Rotor
DURAGO : BR900516

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.73
Outside Diameter (MM): 298
Overall Height (IN): 2.05
Overall Height (MM): 52
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

PONTIAC (1)

OE号码

品牌	号码
OE	AX90051*

品牌	号码
OE	AX900516:*

品牌	号码
OE	90051*
