DURAGO
BR90050802

第三方数据DURAGO : BR90050802

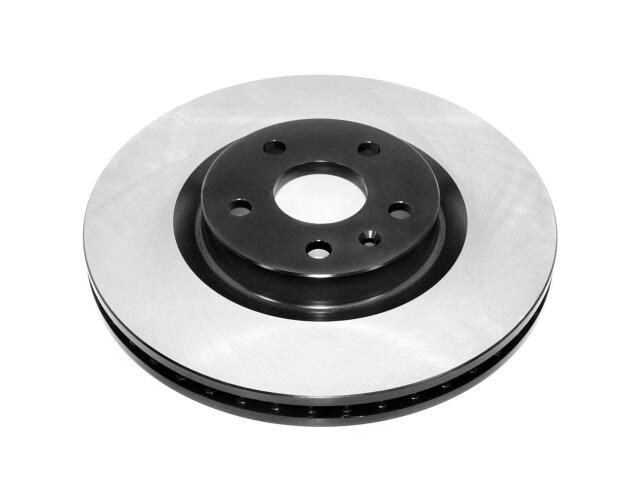

Rotor
DURAGO : BR90050802

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 2.01
Overall Height (MM): 51
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CADILLAC (2)

CTS (2)

XTS (2)

CHEVROLET (1)

OE号码

品牌	号码
OE	BR900508-0*
