DURAGO
BR90038802

第三方数据DURAGO : BR90038802

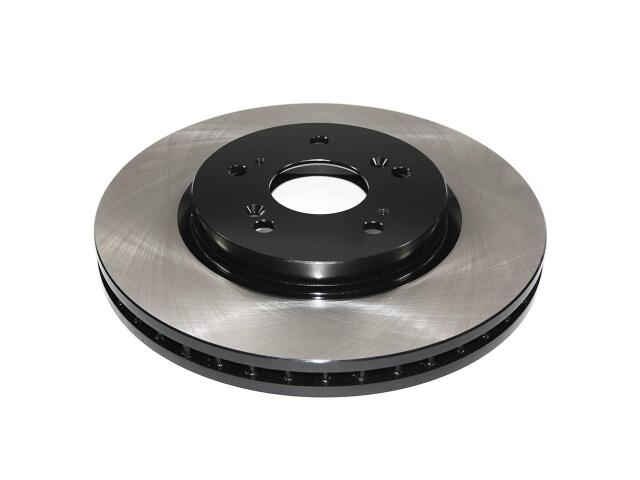

Rotor
DURAGO : BR90038802

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.65
Outside Diameter (MM): 296
Overall Height (IN): 1.86
Overall Height (MM): 47.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HONDA (3)

CR-V (1)

CROSSTOUR (2)

ACCORD CROSSTOUR (1)

ACURA (1)

OE号码

品牌	号码
OE	BR900388-0*
