DURAGO
BR900384

第三方数据DURAGO : BR900384

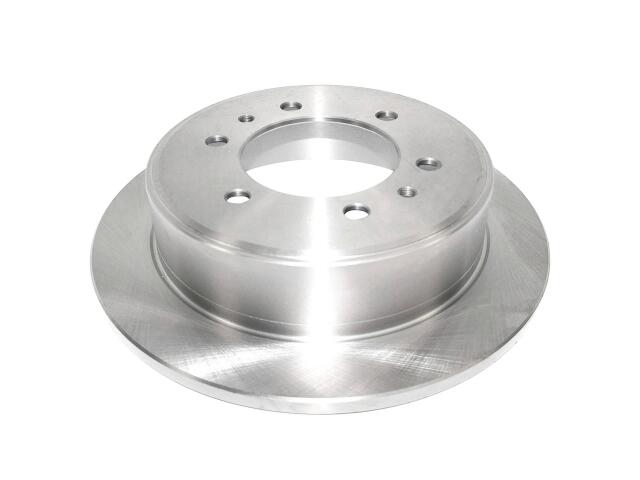

Rotor
DURAGO : BR900384

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.98
Center Hole Diameter (MM): 101
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 2.68
Overall Height (MM): 68
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HUMMER (2)

OE号码

品牌	号码
OE	5704G:*
OE	BR900384:*

品牌	号码
OE	AX90038*

品牌	号码
OE	12636*
