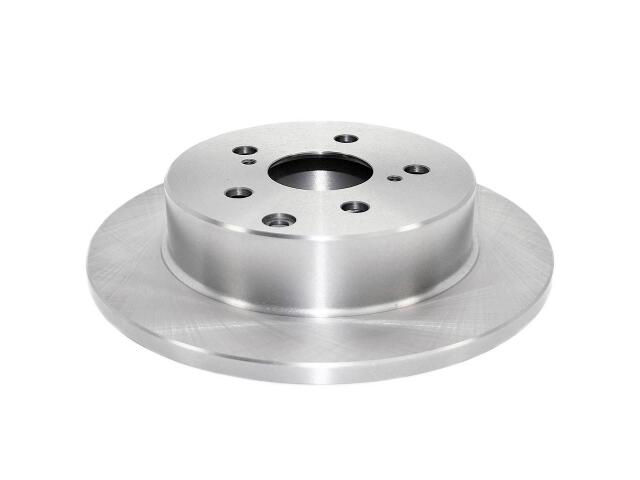

Rotor
DURAGO : BR900360

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.06
Outside Diameter (MM): 281
Overall Height (IN): 2.17
Overall Height (MM): 55
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

LEXUS (1)

TOYOTA (1)

RAV4 (5)

2.4L L4 (3)

2.5L L4 (10)

2.5L L4 ELECTRIC/GAS (3)

3.5L V6 (7)

ELECTRIC (2)

OE号码

品牌	号码
OE	12640*

品牌	号码
OE	AX90036*
