DURAGO
BR900340

第三方数据DURAGO : BR900340

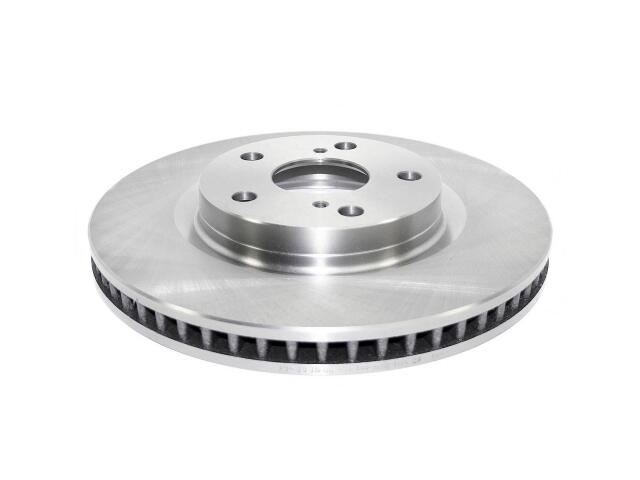

Rotor
DURAGO : BR900340

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.44
Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.98
Discard Thickness (MM): 25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.65
Outside Diameter (MM): 295.8
Overall Height (IN): 1.93
Overall Height (MM): 49
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

LEXUS (2)

TOYOTA (10)

COROLLA IM (1)

C-HR (1)

PRIUS (1)

PRIUS PRIME (1)

CAMRY (5)

2.4L L4 (3)

2.4L L4 ELECTRIC/GAS (5)

2.5L L4 (10)

2.5L L4 ELECTRIC/GAS (6)

3.5L V6 (11)

MATRIX (1)

RAV4 (5)

2.4L L4 (3)

2.5L L4 (16)

2.5L L4 ELECTRIC/GAS (9)

3.5L V6 (7)

ELECTRIC (2)

AVALON (2)

VENZA (1)

MIRAI (1)

PONTIAC (1)

SCION (2)

OE号码

品牌	号码
OE	90034*

品牌	号码
OE	AX90034*

品牌	号码
OE	435123315*
