DURAGO
BR900330

第三方数据DURAGO : BR900330

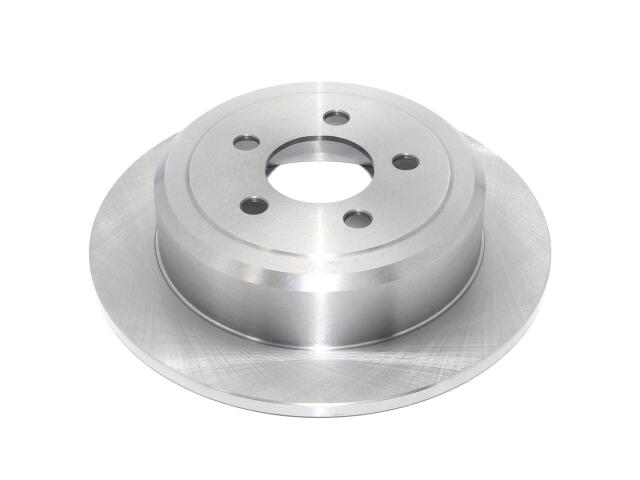

Rotor
DURAGO : BR900330

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.66
Mounting Bolt Hole Diameter (MM): 16.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.45
Outside Diameter (MM): 316.2
Overall Height (IN): 3.01
Overall Height (MM): 76.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	AX90033*

品牌	号码
OE	AX900330:*

品牌	号码
OE	90033*
