DURAGO
BR900322

第三方数据DURAGO : BR900322

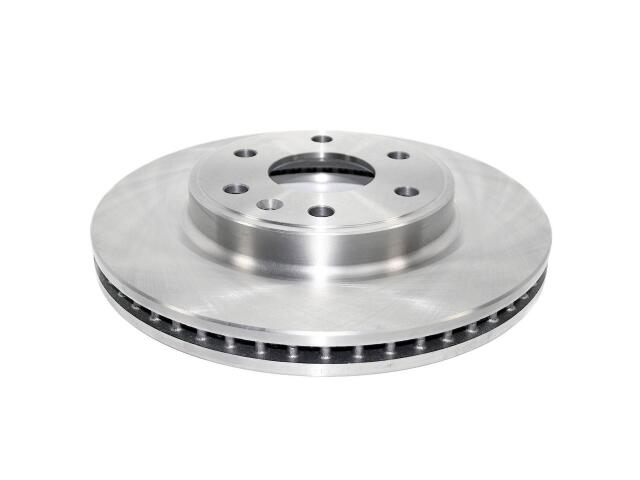

Rotor
DURAGO : BR900322

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.98
Center Hole Diameter (MM): 75.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.08
Discard Thickness (MM): 27.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.2
Mounting Bolt Hole Circle Diameter (MM): 132
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.14
Nominal Thickness (MM): 29
Outside Diameter (IN): 12.8
Outside Diameter (MM): 325
Overall Height (IN): 2.15
Overall Height (MM): 54.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CHEVROLET (1)

GMC (2)

SATURN (1)

OE号码

品牌	号码
OE	90032*

品牌	号码
OE	AX90032*
