DURAGO
BR900273

第三方数据DURAGO : BR900273

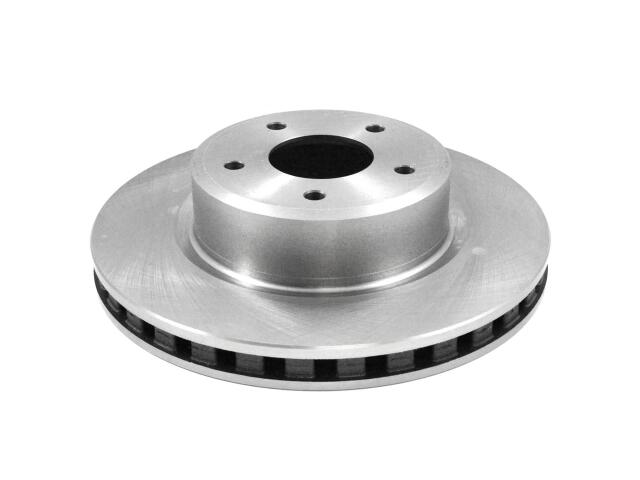

Rotor
DURAGO : BR900273

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.81
Center Hole Diameter (MM): 71.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.18
Discard Thickness (MM): 30
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 3.25
Overall Height (MM): 82.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

PONTIAC (1)

OE号码

品牌	号码
OE	AX90027*

品牌	号码
OE	90027*
