DURAGO
BR5599

第三方数据DURAGO : BR5599

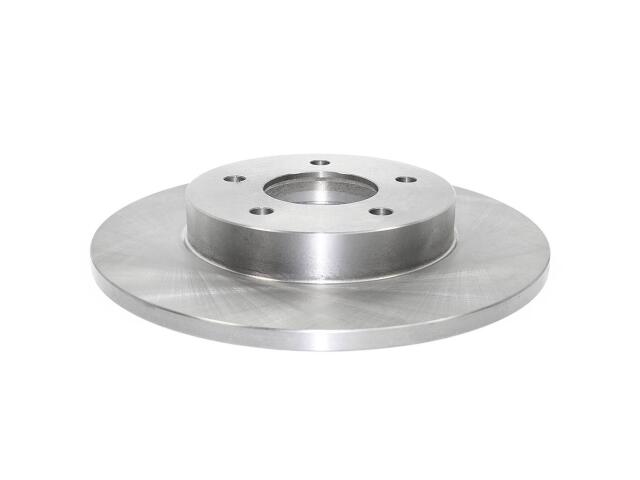

Rotor
DURAGO : BR5599

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.37
Discard Thickness (MM): 9.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 11.06
Outside Diameter (MM): 281
Overall Height (IN): 1.51
Overall Height (MM): 38.3
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

PONTIAC (1)

OE号码

品牌	号码
OE	12521*

品牌	号码
OE	AX559*
