DURAGO
BR558001

第三方数据DURAGO : BR558001

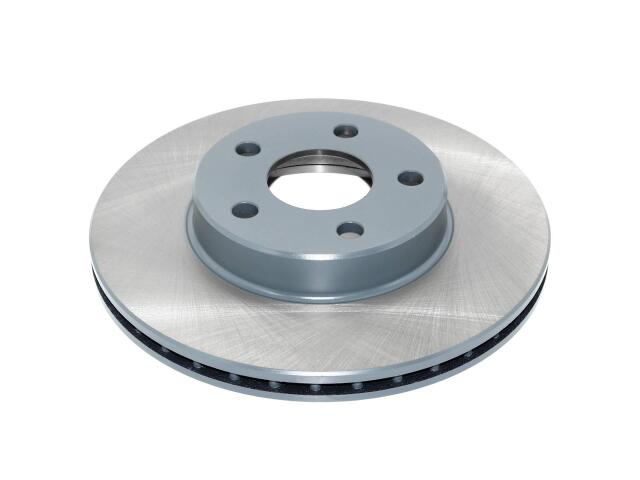

Rotor
DURAGO : BR558001

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.3
Center Hole Diameter (MM): 58.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.74
Discard Thickness (MM): 18.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.8
Nominal Thickness (MM): 20.33
Outside Diameter (IN): 10.2
Outside Diameter (MM): 259
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

PONTIAC (1)

OE号码

品牌	号码
OE	BR5580-0*

品牌	号码
OE	AX5580*
