DURAGO
BR55102

第三方数据DURAGO : BR55102

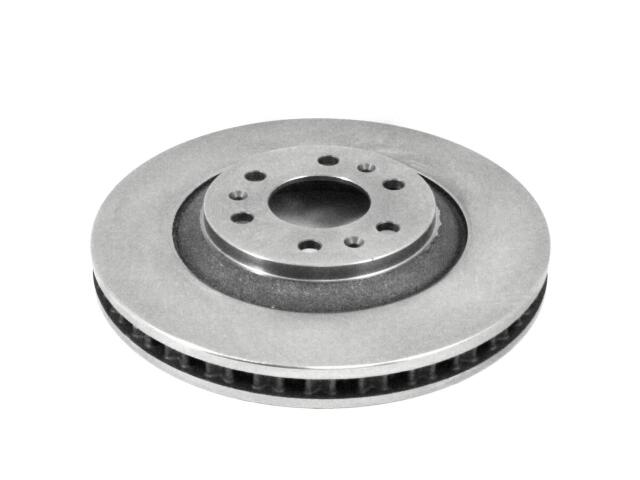

Rotor
DURAGO : BR55102

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.45
Center Hole Diameter (MM): 62.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.6
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.07
Outside Diameter (MM): 255.9
Overall Height (IN): 1.72
Overall Height (MM): 43.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	AX55102:*
OE	55102G:*

品牌	号码
OE	AX5510*
OE	BR55102:*

品牌	号码
OE	12661*
