DURAGO
BR55101

第三方数据DURAGO : BR55101

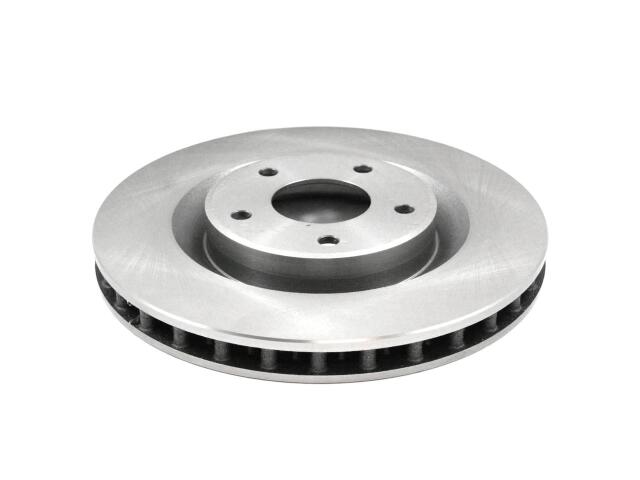

Rotor
DURAGO : BR55101

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.18
Discard Thickness (MM): 30
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 12.8
Outside Diameter (MM): 325
Overall Height (IN): 1.79
Overall Height (MM): 45.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	55101G:*

品牌	号码
OE	12626*

品牌	号码
OE	AX5510*
