第三方数据DURAGO : BR55085

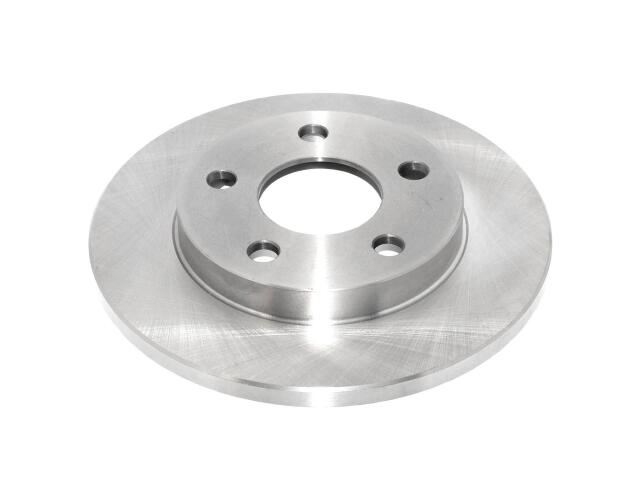

Rotor
DURAGO : BR55085

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.49
Discard Thickness (MM): 12.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.65
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14
Outside Diameter (IN): 10.63
Outside Diameter (MM): 270
Overall Height (IN): 1.44
Overall Height (MM): 36.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (2)

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	AX55085:*

品牌	号码
OE	12618*

品牌	号码
OE	AX5508*
