DURAGO
BR55073

第三方数据DURAGO : BR55073

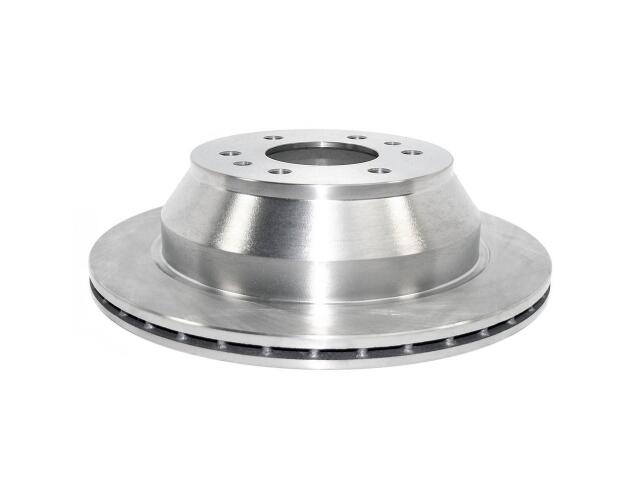

Rotor
DURAGO : BR55073

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.09
Center Hole Diameter (MM): 78.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.73
Discard Thickness (MM): 18.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20.1
Outside Diameter (IN): 12.8
Outside Diameter (MM): 325
Overall Height (IN): 3.35
Overall Height (MM): 85.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CHEVROLET (2)

GMC (1)

OE号码

品牌	号码
OE	12602*

品牌	号码
OE	AX5507*
