DURAGO
BR55069

第三方数据DURAGO : BR55069

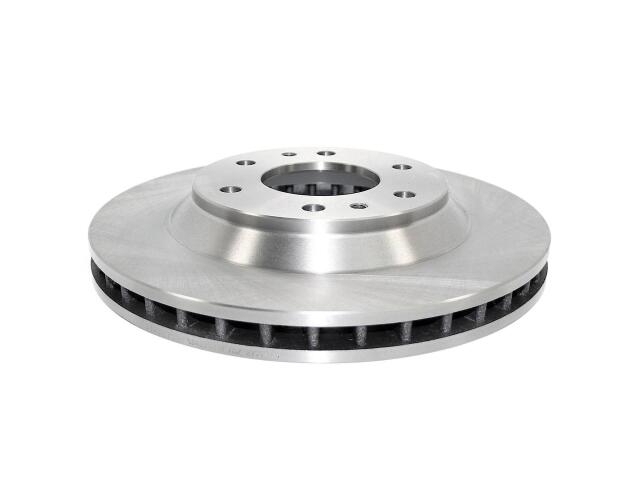

Rotor
DURAGO : BR55069

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.12
Center Hole Diameter (MM): 79.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.08
Discard Thickness (MM): 27.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.15
Nominal Thickness (MM): 29.1
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 2.14
Overall Height (MM): 54.3
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ISUZU (1)

BUICK (1)

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	12602*

品牌	号码
OE	AX5506*
