DURAGO
BR5506502

第三方数据DURAGO : BR5506502

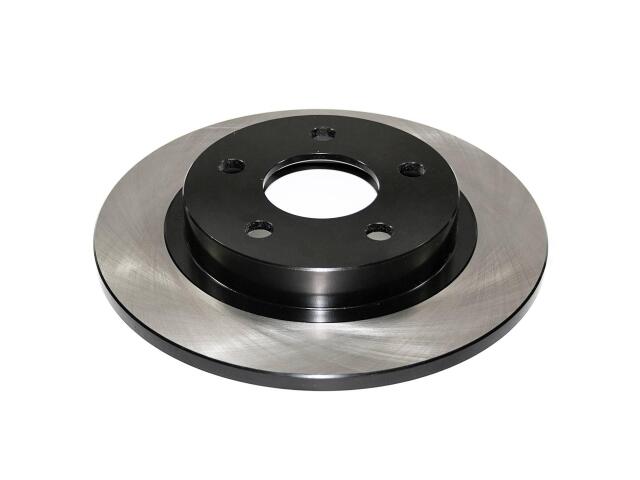

Rotor
DURAGO : BR5506502

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.9
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.65
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 11.06
Outside Diameter (MM): 280.8
Overall Height (IN): 1.53
Overall Height (MM): 38.8
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

OE号码

品牌	号码
OE	BR55065-0*
