DURAGO
BR5485

第三方数据DURAGO : BR5485

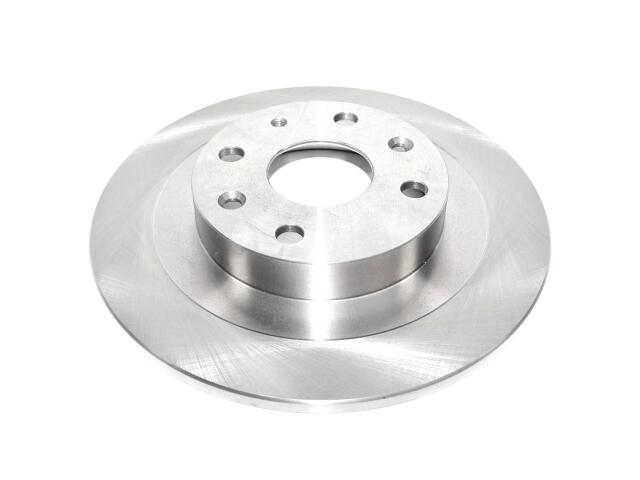

Rotor
DURAGO : BR5485

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.35
Nominal Thickness (MM): 9
Outside Diameter (IN): 9.88
Outside Diameter (MM): 251
Overall Height (IN): 1.38
Overall Height (MM): 35
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	AX548*

品牌	号码
OE	12510*
