BR54136

第三方数据DURAGO : BR54136

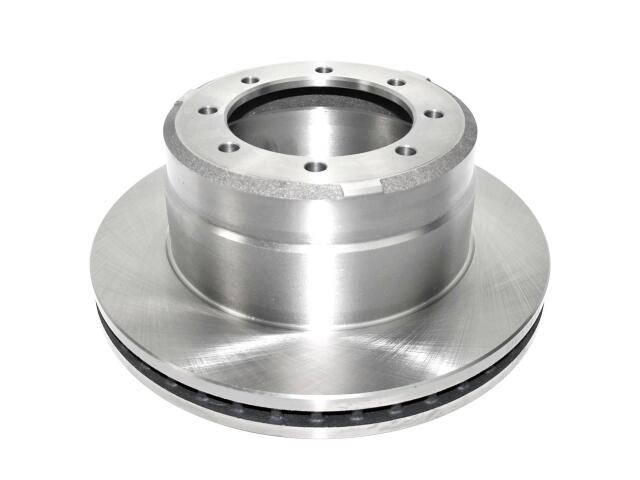

Rotor
DURAGO : BR54136

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.04
Center Hole Diameter (MM): 128
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.28
Discard Thickness (MM): 32.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.14
Mounting Bolt Hole Circle Diameter (MM): 156
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 13.39
Outside Diameter (MM): 340
Overall Height (IN): 4.92
Overall Height (MM): 125
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

F-350 SUPER DUTY (6)

5.4L V8 (6)

6.0L V8 DIESEL Turbocharged (3)

6.2L V8 (2)

6.4L V8 DIESEL Turbocharged (3)

6.7L V8 DIESEL Turbocharged (2)

6.8L V10 (6)

F-450 SUPER DUTY (2)

OE号码

品牌	号码
OE	AX5413*

品牌	号码
OE	12627*
