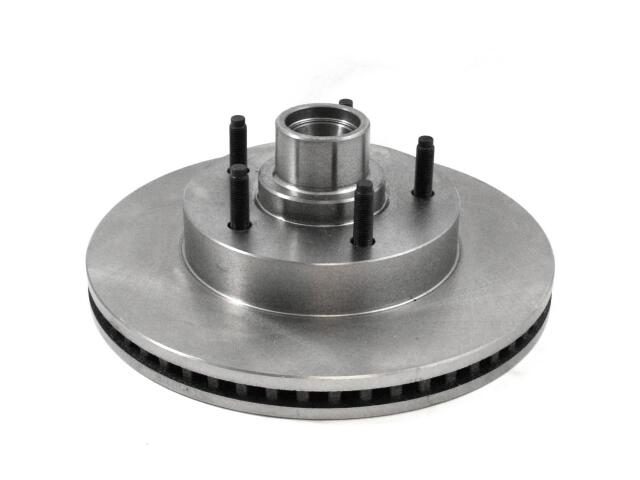

Rotor
DURAGO : BR54133

Abs Tone Ring Included: Yes
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.15
Discard Thickness (MM): 29.2
Inner Bearing Cup Included: Yes
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Nominal Thickness (IN): 1.24
Nominal Thickness (MM): 31.5
Outer Bearing Cup Included: Yes
Overall Height (IN): 4.91
Overall Height (MM): 124.7
Rotor Outside Diameter (IN): 12.83
Rotor Outside Diameter (MM): 326
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud Quantity: 5
Stud Thread Size: 1/2-20
Wheel Studs Included: Yes

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX5413*
OE	42148G:*

品牌	号码
OE	AX54133:*

品牌	号码
OE	12611*
