DURAGO
BR54132

第三方数据DURAGO : BR54132

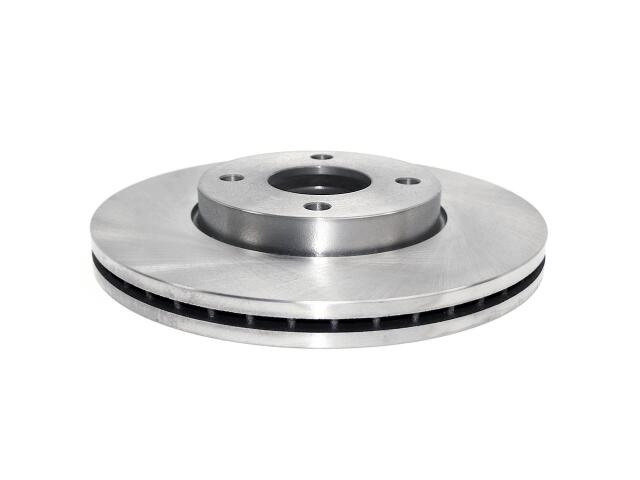

Rotor
DURAGO : BR54132

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 10.94
Outside Diameter (MM): 277.9
Overall Height (IN): 1.76
Overall Height (MM): 44.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

OE号码

品牌	号码
OE	AX5413*
OE	BR54132:*

品牌	号码
OE	AX54132:*
OE	42135G:*

品牌	号码
OE	12618*
