DURAGO
BR54131

第三方数据DURAGO : BR54131

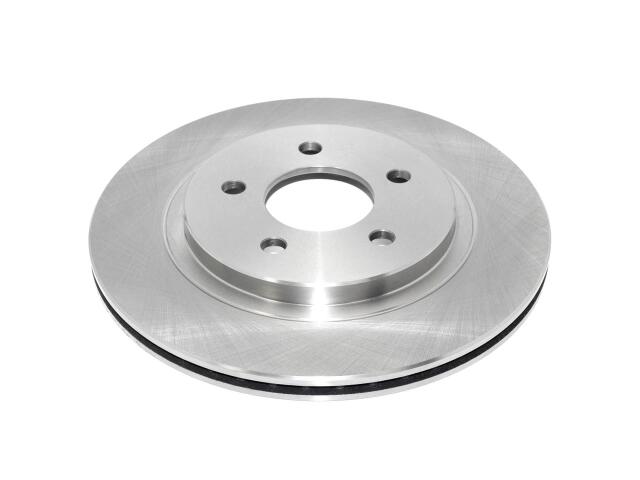

Rotor
DURAGO : BR54131

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.69
Discard Thickness (MM): 17.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.75
Nominal Thickness (MM): 19
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 1.38
Overall Height (MM): 35
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MUSTANG (5)

3.7L V6 (4)

4.0L V6 (6)

4.6L V8 (6)

5.0L V8 (4)

5.4L V8 Supercharged (6)

OE号码

品牌	号码
OE	AX5413*

品牌	号码
OE	12627*
