第三方数据DURAGO : BR54126

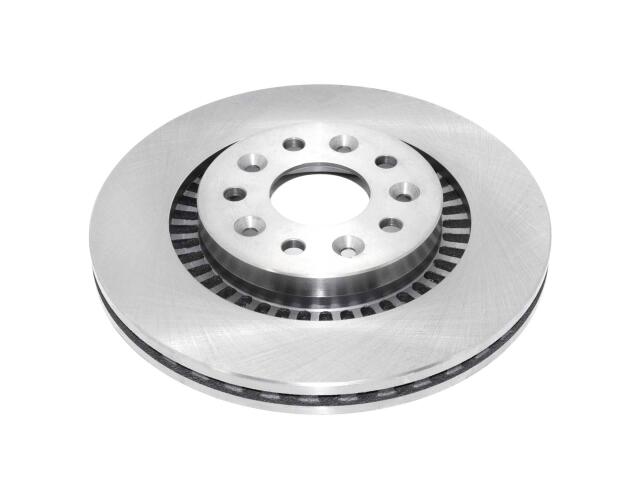

Rotor
DURAGO : BR54126

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.41
Outside Diameter (MM): 315.2
Overall Height (IN): 1.85
Overall Height (MM): 46.9
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (4)

MERCURY (2)

OE号码

品牌	号码
OE	AX5412*

品牌	号码
OE	42145G:*

品牌	号码
OE	12619*
