DURAGO
BR54123

第三方数据DURAGO : BR54123

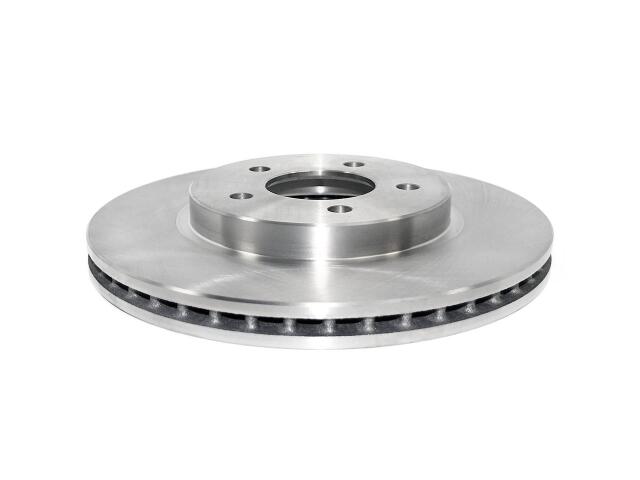

Rotor
DURAGO : BR54123

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.94
Discard Thickness (MM): 24
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.93
Outside Diameter (MM): 302.9
Overall Height (IN): 1.85
Overall Height (MM): 47
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

ESCAPE (5)

2.3L L4 (4)

2.3L L4 ELECTRIC/GAS (4)

2.5L L4 (4)

2.5L L4 ELECTRIC/GAS (4)

3.0L V6 (8)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	54123G:*

品牌	号码
OE	12619*

品牌	号码
OE	AX5412*
