BR5411702

第三方数据DURAGO : BR5411702

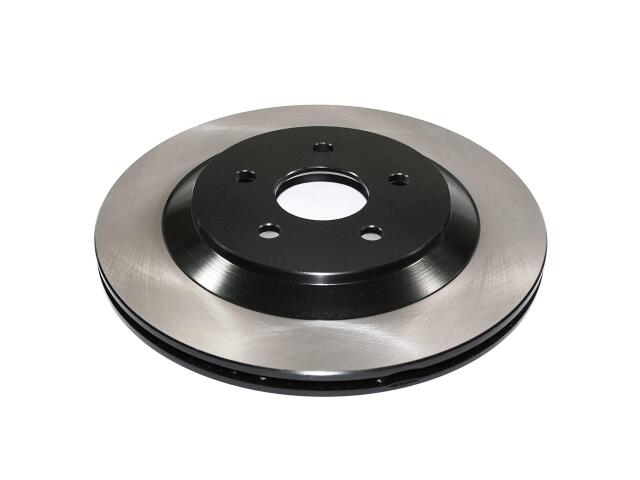

Rotor
DURAGO : BR5411702

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.54
Center Hole Diameter (MM): 64.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.72
Discard Thickness (MM): 18.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.58
Mounting Bolt Hole Diameter (MM): 14.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.44
Outside Diameter (MM): 316
Overall Height (IN): 1.52
Overall Height (MM): 38.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	BR54117-0*
