DURAGO
BR5409901

第三方数据DURAGO : BR5409901

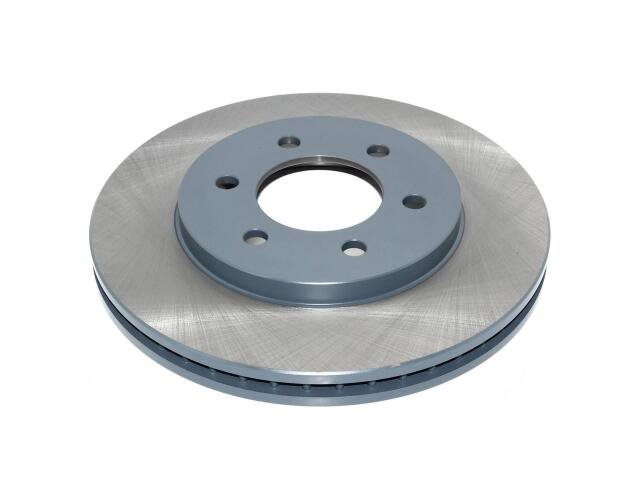

Rotor
DURAGO : BR5409901

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.4
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.98
Outside Diameter (MM): 329.8
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX54099*

品牌	号码
OE	BR54099-0*
