DURAGO
BR54096

第三方数据DURAGO : BR54096

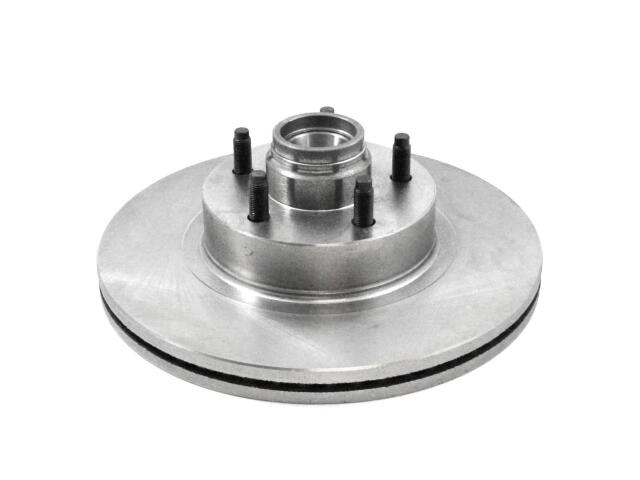

Rotor
DURAGO : BR54096

Abs Tone Ring Included: Yes
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.5
Inner Bearing Cup Included: Yes
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 1.03
Nominal Thickness (MM): 26.2
Outer Bearing Cup Included: Yes
Overall Height (IN): 4.25
Overall Height (MM): 108
Rotor Outside Diameter (IN): 12.01
Rotor Outside Diameter (MM): 305
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud Quantity: 5
Stud Thread Size: 1/2-20
Wheel Studs Included: Yes

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX5409*

品牌	号码
OE	AX54096:*

品牌	号码
OE	12572*
