DURAGO
BR5409401

第三方数据DURAGO : BR5409401

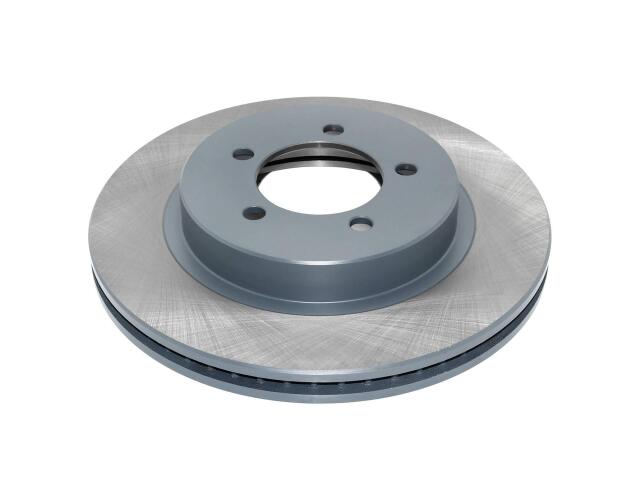

Rotor
DURAGO : BR5409401

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.23
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 2.2
Overall Height (MM): 56
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	BR54094-0*

品牌	号码
OE	AX54094*
