DURAGO
BR5409302

第三方数据DURAGO : BR5409302

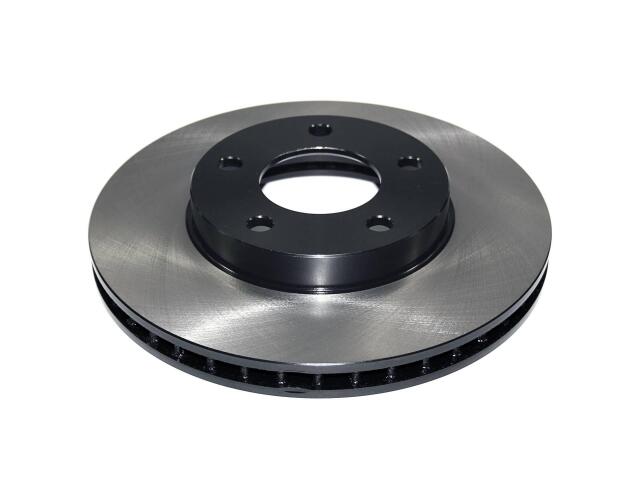

Rotor
DURAGO : BR5409302

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.84
Center Hole Diameter (MM): 72.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 10.94
Outside Diameter (MM): 277.8
Overall Height (IN): 1.84
Overall Height (MM): 46.8
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	BR54093-0*
