DURAGO
BR54088

第三方数据DURAGO : BR54088

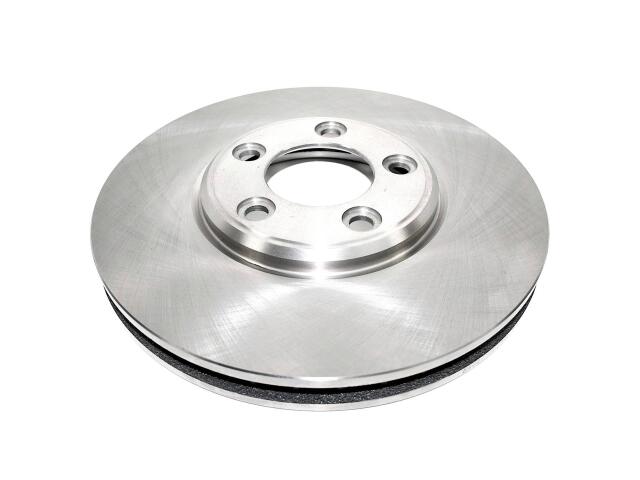

Rotor
DURAGO : BR54088

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 1.69
Overall Height (MM): 43
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

JAGUAR (1)

LINCOLN (1)

OE号码

品牌	号码
OE	54088G:*
OE	AX54088:*

品牌	号码
OE	AX5408*

品牌	号码
OE	12569*
