DURAGO
BR5407902

第三方数据DURAGO : BR5407902

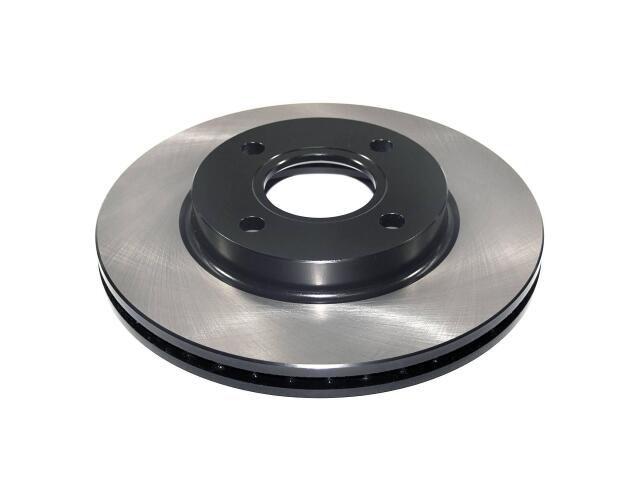

Rotor
DURAGO : BR5407902

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.51
Center Hole Diameter (MM): 63.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 107.95
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.15
Outside Diameter (MM): 257.9
Overall Height (IN): 1.71
Overall Height (MM): 43.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

OE号码

品牌	号码
OE	BR54079-0*
