DURAGO
BR54064

第三方数据DURAGO : BR54064

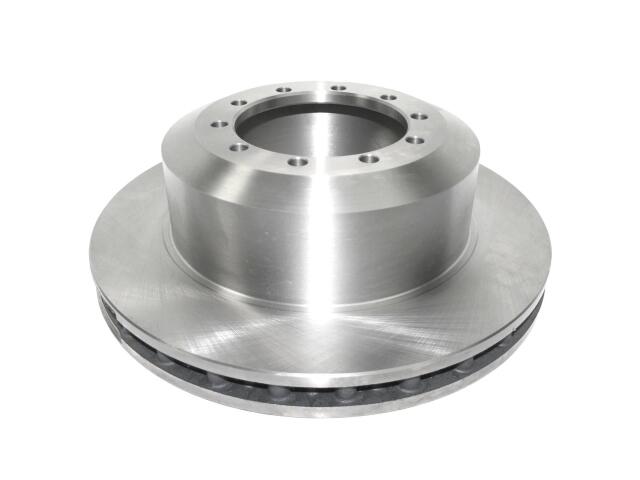

Rotor
DURAGO : BR54064

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.49
Center Hole Diameter (MM): 139.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.42
Discard Thickness (MM): 36
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.42
Mounting Bolt Hole Circle Diameter (MM): 163
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.3
Mounting Bolt Hole Quantity: 10
Nominal Thickness (IN): 1.5
Nominal Thickness (MM): 38.1
Outside Diameter (IN): 15.55
Outside Diameter (MM): 395
Overall Height (IN): 4.87
Overall Height (MM): 123.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

F53 (2)

F59 (2)

OE号码

品牌	号码
OE	AX5406*

品牌	号码
OE	AX54064:*

品牌	号码
OE	12564*
