BR5403002

第三方数据DURAGO : BR5403002

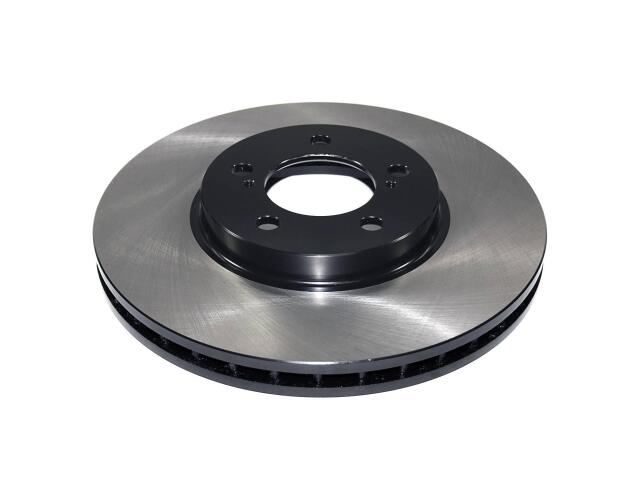

Rotor
DURAGO : BR5403002

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.97
Discard Thickness (MM): 24.75
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 107.95
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.56
Outside Diameter (MM): 293.6
Overall Height (IN): 1.83
Overall Height (MM): 46.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	BR54030-0*
