DURAGO
BR54025

第三方数据DURAGO : BR54025

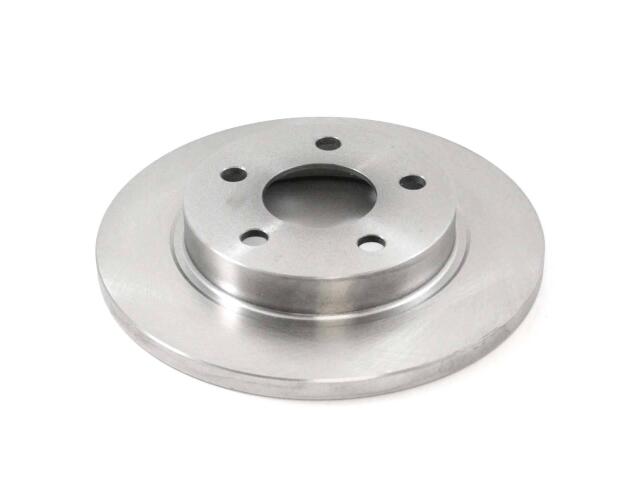

Rotor
DURAGO : BR54025

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.54
Center Hole Diameter (MM): 64.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.5
Discard Thickness (MM): 12.75
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 107.95
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14
Outside Diameter (IN): 10.1
Outside Diameter (MM): 256.5
Overall Height (IN): 1.57
Overall Height (MM): 39.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	AX5402*
OE	54025G:*

品牌	号码
OE	AX54025:*

品牌	号码
OE	12532*
