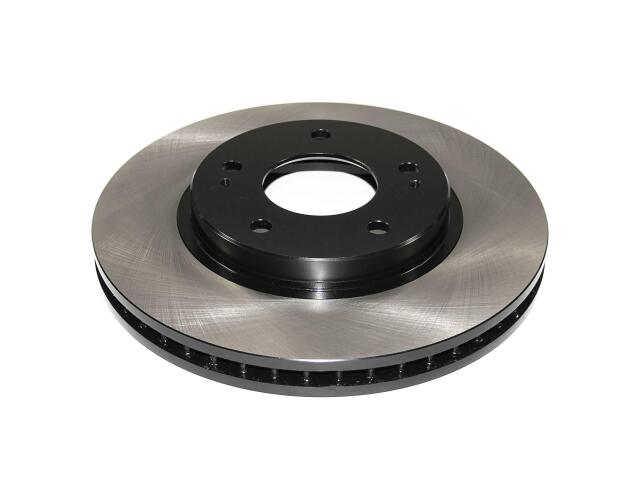

Rotor
DURAGO : BR539902

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 10.87
Outside Diameter (MM): 276
Overall Height (IN): 1.79
Overall Height (MM): 45.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

MITSUBISHI (3)

DODGE (1)

OE号码

品牌	号码
OE	BR5399-0*
