DURAGO
BR5396

第三方数据DURAGO : BR5396

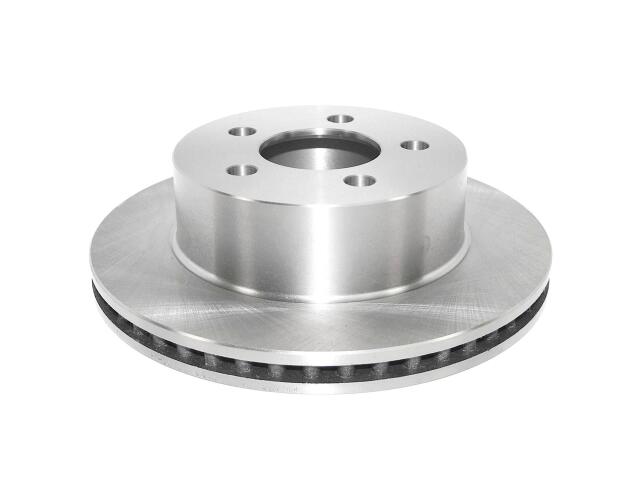

Rotor
DURAGO : BR5396

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.89
Discard Thickness (MM): 22.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.95
Nominal Thickness (MM): 24.2
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 3.07
Overall Height (MM): 78
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

JEEP (1)

OE号码

品牌	号码
OE	AX539*

品牌	号码
OE	12571*
