DURAGO
BR538102

第三方数据DURAGO : BR538102

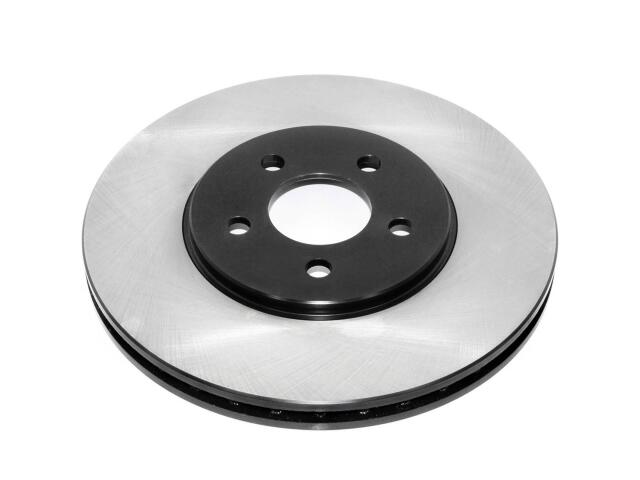

Rotor
DURAGO : BR538102

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.4
Center Hole Diameter (MM): 61
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.84
Discard Thickness (MM): 21.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 11.11
Outside Diameter (MM): 282.3
Overall Height (IN): 1.26
Overall Height (MM): 32.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (2)

DODGE (1)

OE号码

品牌	号码
OE	BR5381-0*
