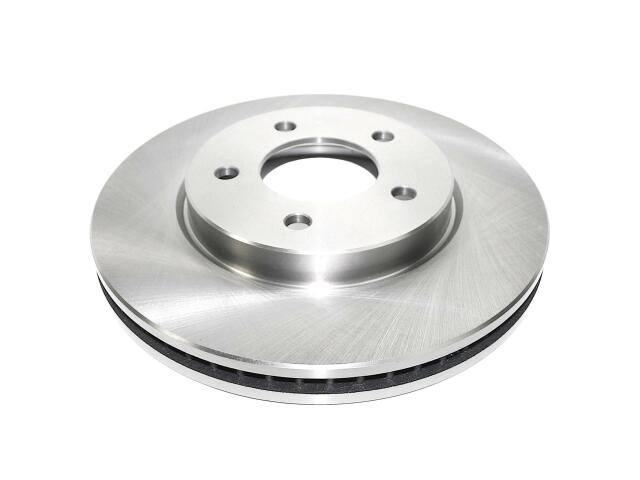

Rotor
DURAGO : BR53019

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.23
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.52
Outside Diameter (MM): 318
Overall Height (IN): 1.85
Overall Height (MM): 47.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	AX5301*

品牌	号码
OE	AX53019:*

品牌	号码
OE	12615*
