DURAGO
BR53018

第三方数据DURAGO : BR53018

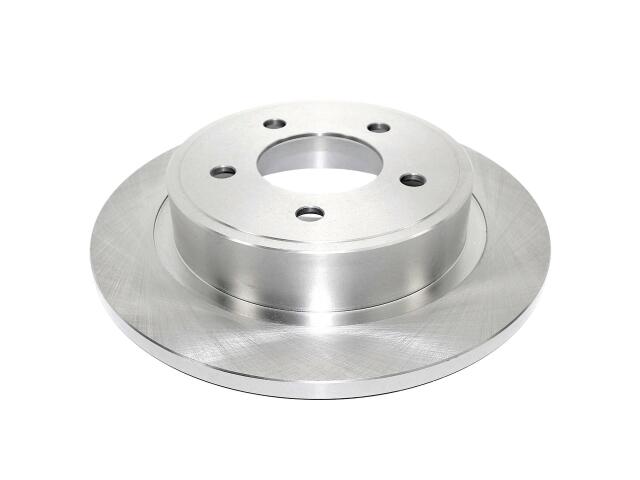

Rotor
DURAGO : BR53018

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.23
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.49
Discard Thickness (MM): 12.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 2.33
Overall Height (MM): 59.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	AX53018:*

品牌	号码
OE	AX5301*

品牌	号码
OE	12615*
