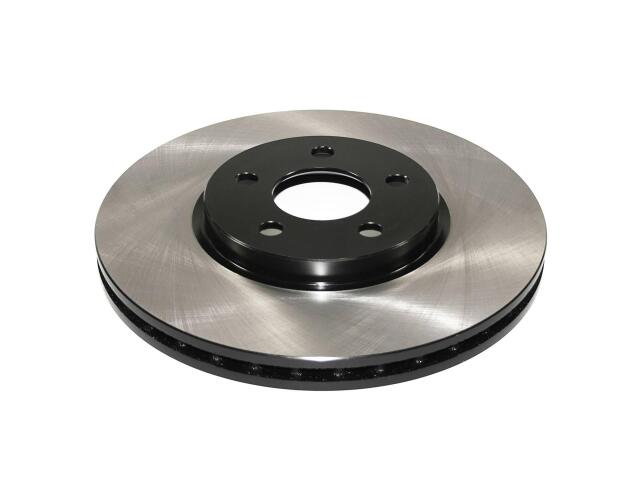

Rotor
DURAGO : BR5300002

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.4
Center Hole Diameter (MM): 61
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.84
Discard Thickness (MM): 21.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 11.03
Outside Diameter (MM): 280.1
Overall Height (IN): 1.54
Overall Height (MM): 39.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	BR53000-0*
