DURAGO
BR3460

第三方数据DURAGO : BR3460

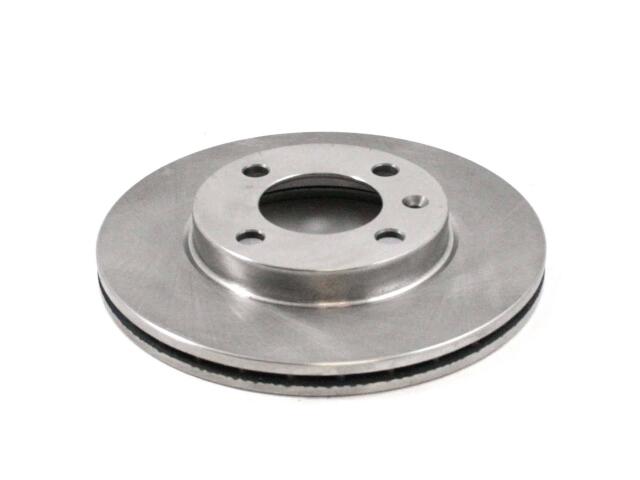

Rotor
DURAGO : BR3460

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.75
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.78
Nominal Thickness (MM): 19.9
Outside Diameter (IN): 9.41
Outside Diameter (MM): 239
Overall Height (IN): 1.52
Overall Height (MM): 38.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

VOLKSWAGEN (3)

OE号码

品牌	号码
OE	AX346*

品牌	号码
OE	6071*
