DURAGO
BR34251

第三方数据DURAGO : BR34251

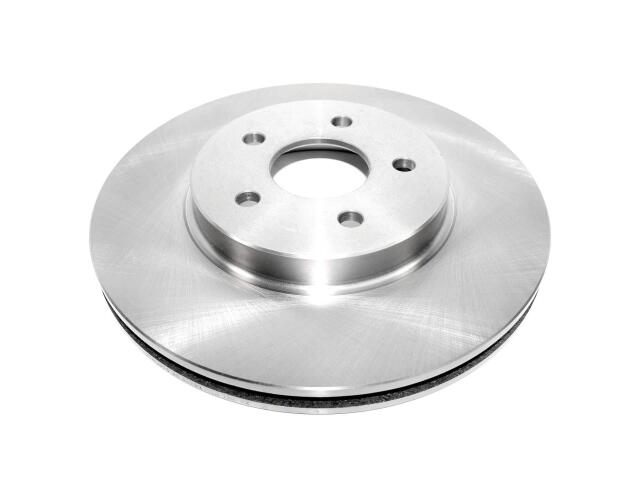

Rotor
DURAGO : BR34251

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 1.85
Overall Height (MM): 47.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

JAGUAR (1)

OE号码

品牌	号码
OE	34251G:*
OE	AX34251:*

品牌	号码
OE	34251*
OE	12625*

品牌	号码
OE	AX3425*
