DURAGO
BR34226

第三方数据DURAGO : BR34226

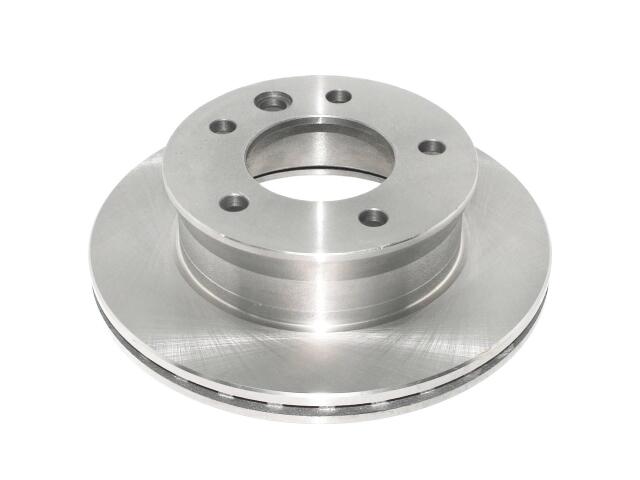

Rotor
DURAGO : BR34226

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.35
Center Hole Diameter (MM): 85.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.75
Discard Thickness (MM): 19
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.86
Outside Diameter (MM): 275.8
Overall Height (IN): 3.03
Overall Height (MM): 77
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

DODGE (2)

FREIGHTLINER (2)

OE号码

品牌	号码
OE	AX34226:*
OE	AX3422*

品牌	号码
OE	34226G:*

品牌	号码
OE	12627*
