DURAGO
BR34222

第三方数据DURAGO : BR34222

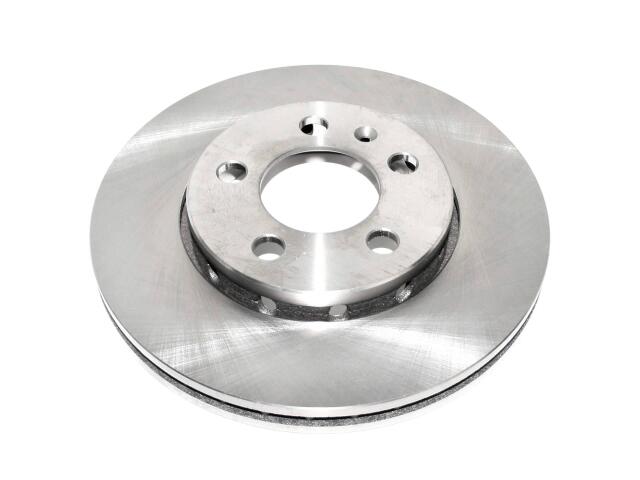

Rotor
DURAGO : BR34222

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.86
Nominal Thickness (MM): 21.9
Outside Diameter (IN): 10.08
Outside Diameter (MM): 256
Overall Height (IN): 1.43
Overall Height (MM): 36.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

VOLKSWAGEN (3)

POLO (2)

GOLF (4)

JETTA (3)

AUDI (2)

SEAT (2)

OE号码

品牌	号码
OE	34222G:*
OE	AX34222:*

品牌	号码
OE	AX3422*

品牌	号码
OE	3422*
