DURAGO
BR34215

第三方数据DURAGO : BR34215

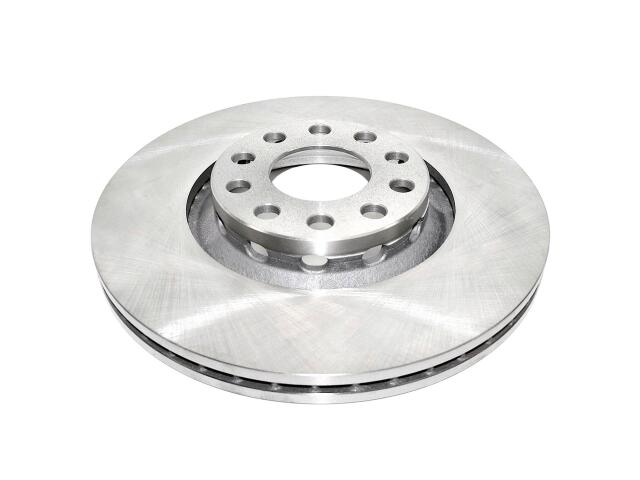

Rotor
DURAGO : BR34215

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 1.82
Overall Height (MM): 46.3
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

AUDI (1)

SEAT (1)

OE号码

品牌	号码
OE	34215*
OE	34215G:*

品牌	号码
OE	AX34215:*
OE	AX3421*

品牌	号码
OE	12632*
