DURAGO
BR34206

第三方数据DURAGO : BR34206

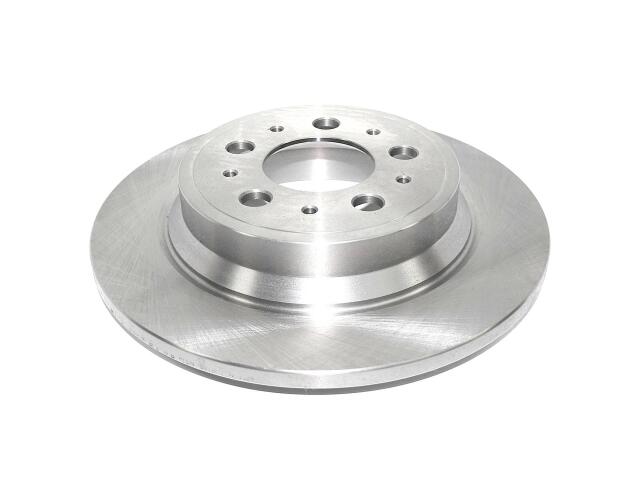

Rotor
DURAGO : BR34206

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.66
Mounting Bolt Hole Diameter (MM): 16.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.34
Outside Diameter (MM): 288
Overall Height (IN): 2.56
Overall Height (MM): 65
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

VOLVO (4)

S60 (4)

V70 (3)

S80 (2)

XC70 (1)

OE号码

品牌	号码
OE	AX3420*

品牌	号码
OE	34206G:*

品牌	号码
OE	12621*
