DURAGO
BR34193

第三方数据DURAGO : BR34193

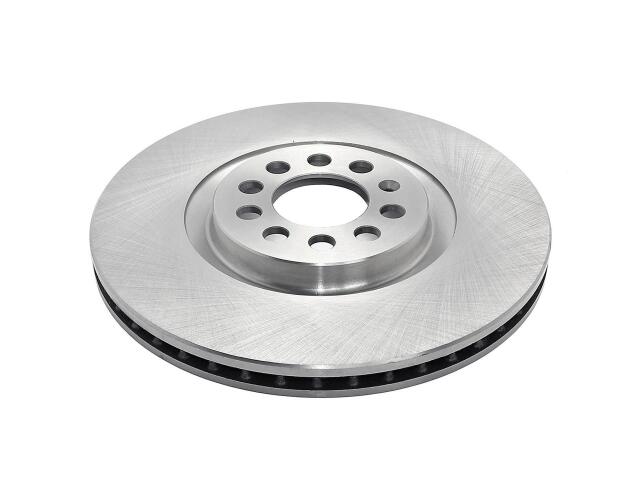

Rotor
DURAGO : BR34193

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 1.35
Overall Height (MM): 34.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

VOLKSWAGEN (2)

AUDI (2)

SEAT (2)

OE号码

品牌	号码
OE	AX3419*

品牌	号码
OE	12624*
