DURAGO
BR3411102

第三方数据DURAGO : BR3411102

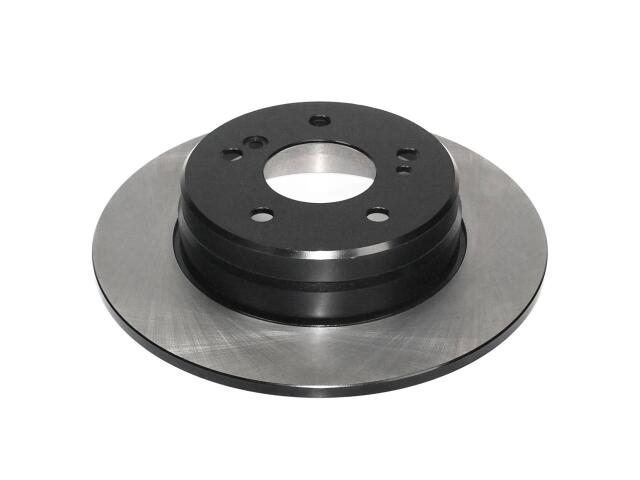

Rotor
DURAGO : BR3411102

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.29
Discard Thickness (MM): 7.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.35
Nominal Thickness (MM): 9
Outside Diameter (IN): 10.94
Outside Diameter (MM): 278
Overall Height (IN): 2.19
Overall Height (MM): 55.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

MERCEDES-BENZ (4)

OE号码

品牌	号码
OE	BR34111-0*
